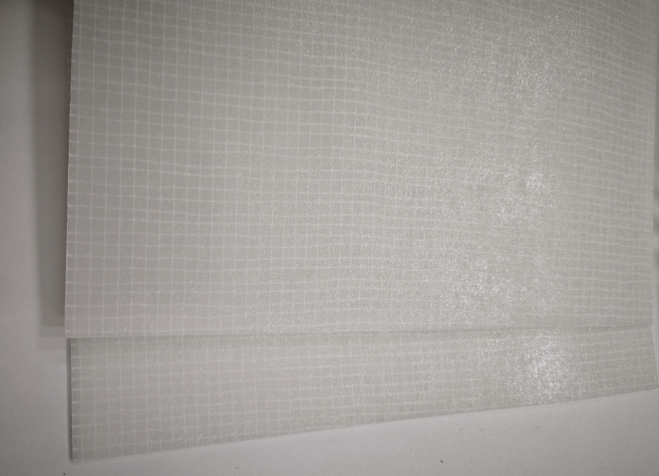

BY-PCS100
BY-PCS sheets is a non-combustible sheet based on silicate, which expands to a hard shield in case of fire. During expansion pressure is build up. At the same time a pressure resistant heat-isolating foam will form. This special characteristic has the advantage that it forms a barrier against fire and smoke. The heat absorption, the isolation of the surface below and the pressure strength of the silicate make this product suitable to reach the highest levels of fire-protection for many applications.
Technical Data
|
Density |
approx. 1.25 g/cm³ to 1.35 g/cm³ |
|
Expansion temperature |
starting from 100℃-120℃ |
|
Expansion factor |
up to 10-fold its original thickness |
|
Color |
white，brown，black or customized |
Applications
BY-PS100 sheets are especially developed for the manufacturing of fire doors and for the use in interior fire walls.
BY-PS100 sheets can be used laminar with other materials to produce sandwiched fireproof constructions.
Availability
BY-PC100 sheets are available in the following standard dimensions:
Thickness: 2mm and 4mm; tolerance +/- 0.3mm, resp. +/- 0.6mm
Length/Width: 2.150 x 1.110mm to 2.400 x 1.100mm
Other measures on request.
